Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: OEM, OEM/Tesla smart
  • Model Number: 3.5mm Audio Cable
  • Type: Other
  • Application: Computer
  • Color: Blue, Gray, Grey, Red, White
  • Packing: Carton Box
  • Outer Diameter: Customized
  • Connector Color: Gray
  • Connector Type: HDMI
  • Shielding: Braid
  • Gender: Female-Female
  • Product Name: 2 port USB HDMI Switcher HDMI KVM Switch 2:1
  • Computer Connections: 2 Ports
  • Monitor Connections: 1 Ports
  • Interface Type: HDMI,USB
  • Resolution: 3840*2160
  • USB 2.0 Devices: Yes
  • Material: AL
  • ODM/OEM: Yes
  • Product type: 2 port USB HDMI Switcher HDMI KVM Switch 2:1

Packaging & Delivery

Packaging Details Packaging Details: 8 sets/CTN, 20 KG/CTN
Delivery Detail: Shipped in 15 days after payment
New Funtion 4k 2 port USB HDMI Switcher support full USB2.0 Devices HDMI KVM Switch 2:1
Delivery Time Within 30 days

New Funtion 4k 2 port USB HDMI Switcher support full USB2.0 Devices HDMI KVM Switch 2:1

Product Description

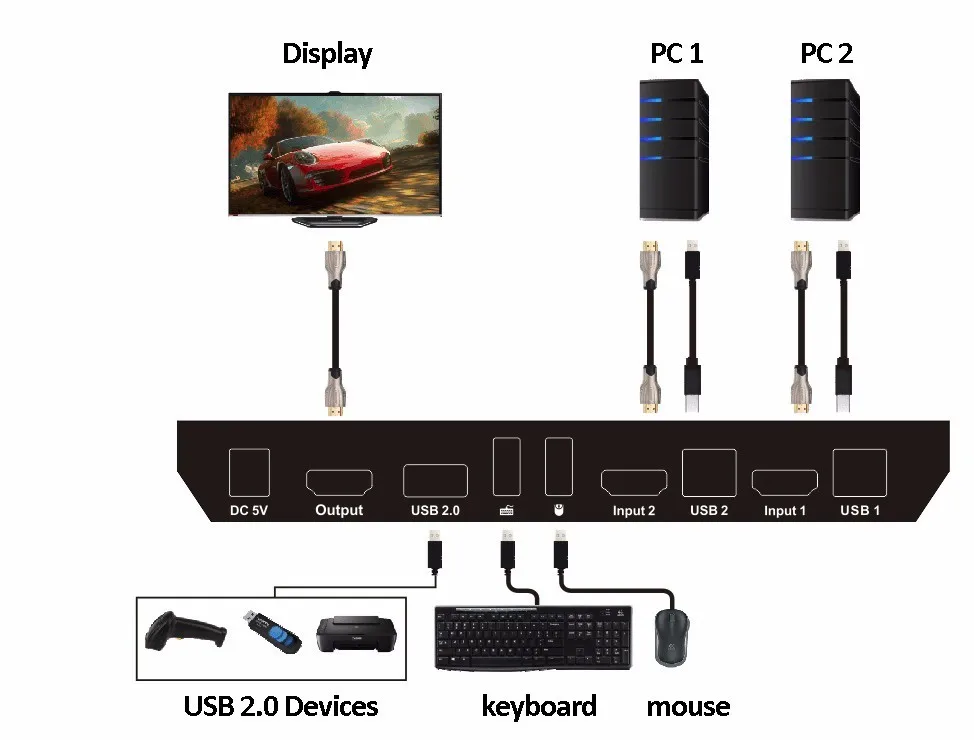

  This 2x1 HDMI KVM Switcher provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.

The 2x1 HDMI KVM Switcher supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel source selector buttons, IR signals and hot keys on keyboard.





Feature



1.Using one USB console controls two HDMI computer equipments

 2.Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for Raspberry Pi and other Linux based system

3. Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices

4. Support auto switching to monitor computers in a specified time interval

5.Support hot key commands and mouse gesture to switch inputs.

6.Support front panel buttons, IR signals, keyboard hot keys to control KVM switch.

7. Support keyboard and mouse smooth switch, no delay is introduced after switch channel.

 8.Support resolution up to 3840*2160@30Hz

 9.With extra standard USB 2.0 hub port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM just as you have plug these devices directly to computer.

 10. Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters.



Specifitions





Model:

HKS0201A10

Functionality:

Auto Scan

Yes

Port selection

Front panel buttons

Yes

Keyboard hotkeys

Yes

IR remote control

Yes

Mouse gesture

Yes

Console commands

No

Technical:

Resolution

Up to 3840x2160@30Hz

HDMI version

1.4

HDCP version

1.3

Auto to get EDID

Yes

Video bandwidth

3 Gbps

Auto scan interval

1~250 Seconds

Beep Sound

On/Off

OSD

No

Supported OS

Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system

Console ports

Keyboard emulation

1 * USB Type A

Mouse emulation

1 * USB Type A

USB 2.0 Hub ports

1 * USB Type A

Video /Audio

1 * HDMI Type A

RS232

NA

LAN

NA

System ports

USB Data

2 * USB Type B

Video / Audio

2 * HDMI Type A

ESD protection

Human body model - ±8kV (Air-gap discharge)

Mechanical:

Chasing material

Aluminum Alloy

Product Dimensions

198 (L) x 82 (W) x 26 (H) mm

Item Weight

500g















Detailed Images

Related Products





Company information

   Established in 2013, Tesla Elec Technology Company limited is a professional manufacturer and exporter that is concerned with the design, development and production of audio and video matrix, splitter, switcher, KVM, extender and converter.



  All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have a R&D team with over ten years experience, providing good solutions and professional technology support. Benefits from commissioned SMT processing, we are able to keep quick delivery and focus more resources on new technology research, product test and improving our customer service.



  Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.  If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are providing ODM and OEM services in various video related products, just tell us your requirements, we can do more than you can imagine. We are looking forward to forming successful business relationships with new clients around the world in the near future.





Packaging & Shipping



1 * 2x1 HDMI KVM Switcher

1 * DC 5V Power Adapter

1 * IR Remote Control

1 * Quick-Start Guide
